Loading computers

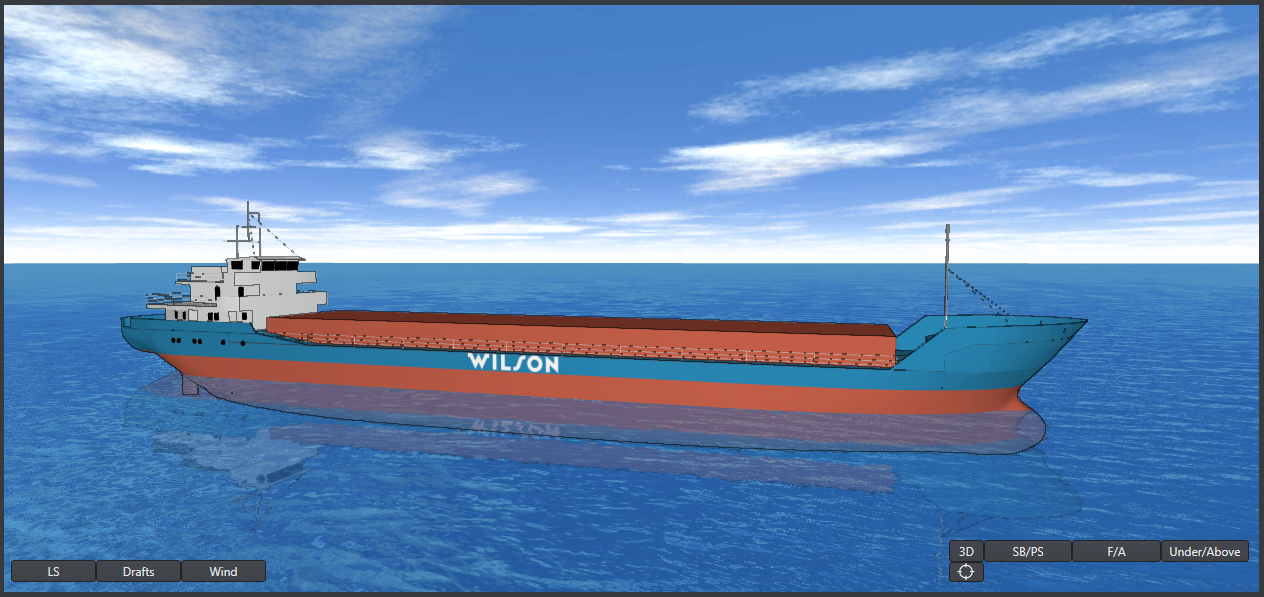

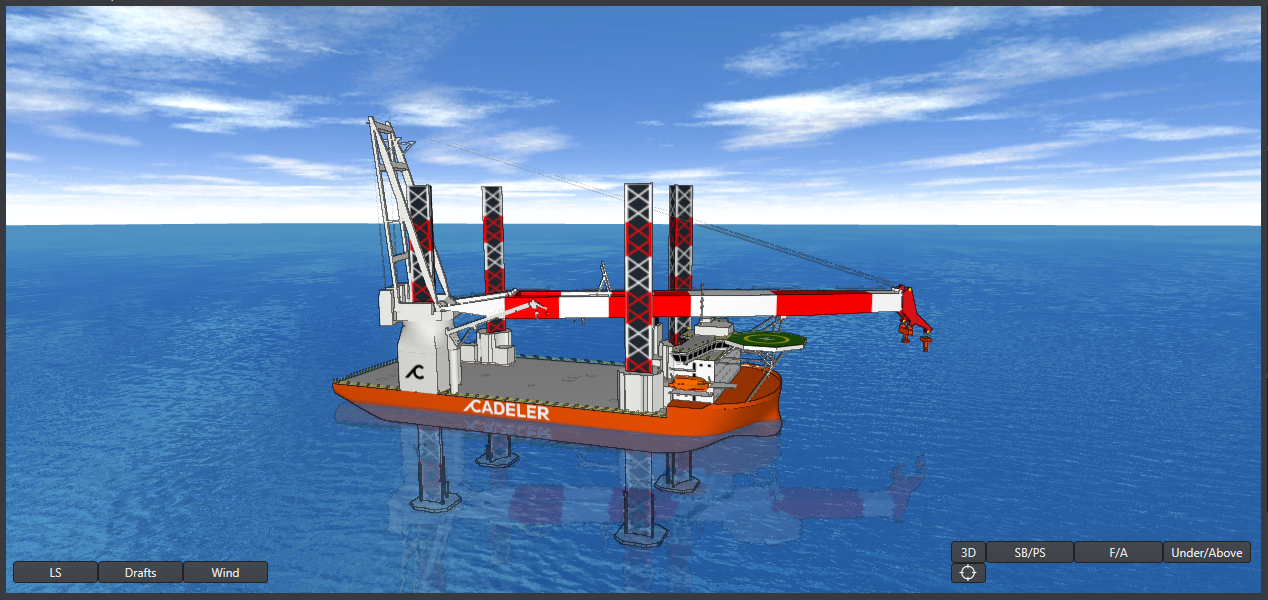

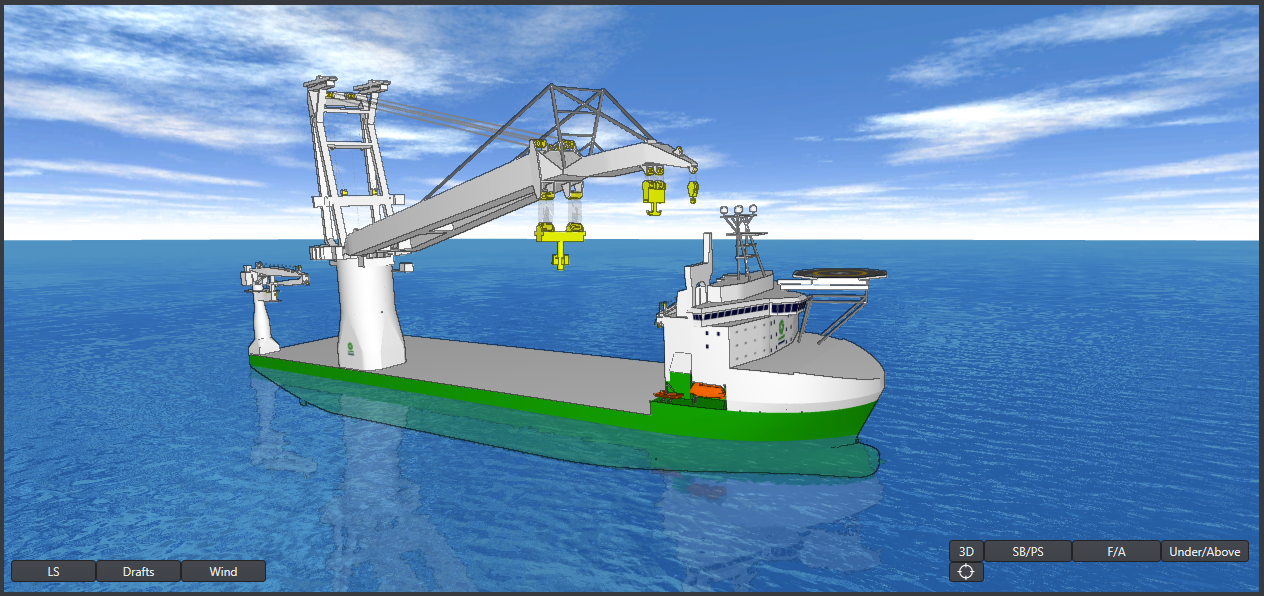

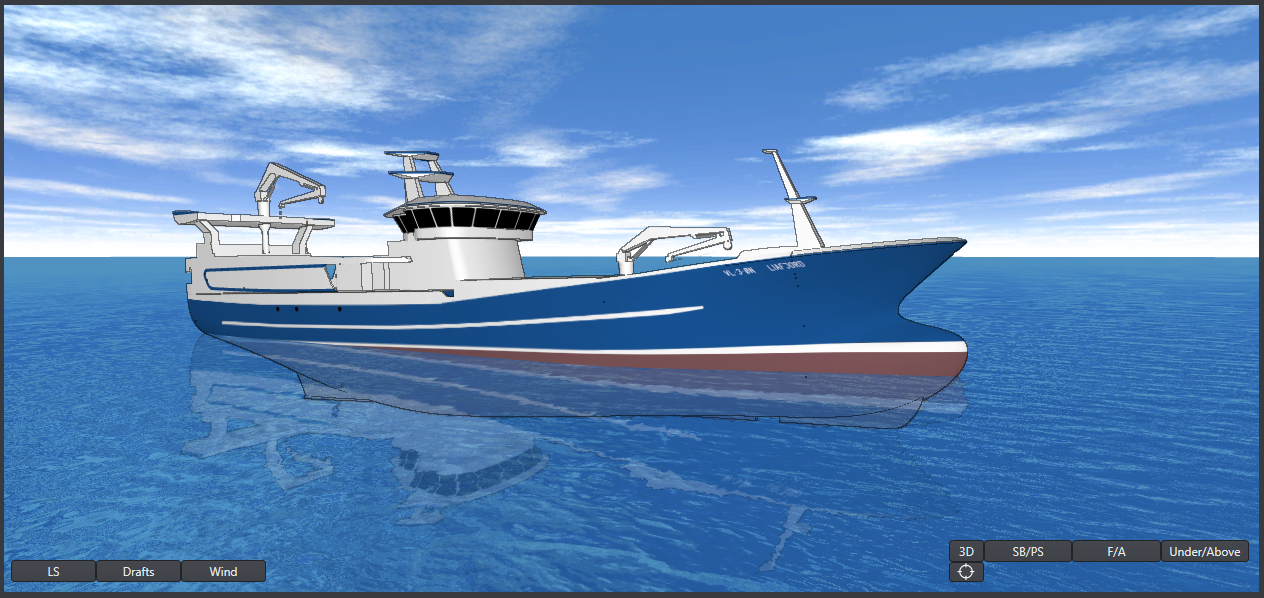

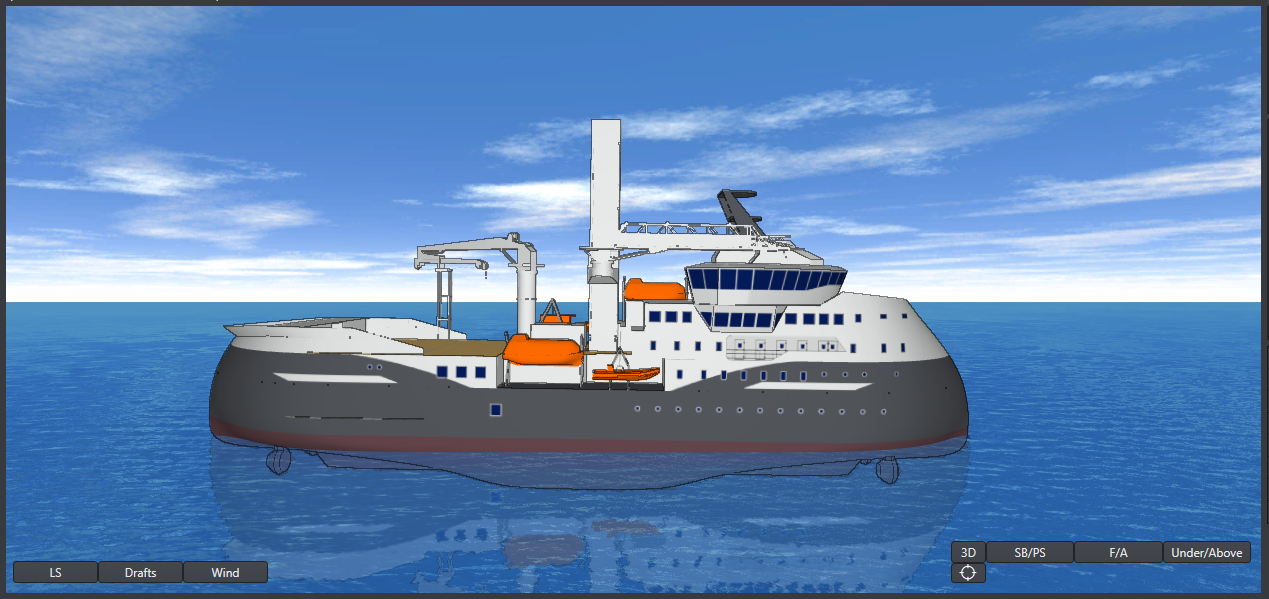

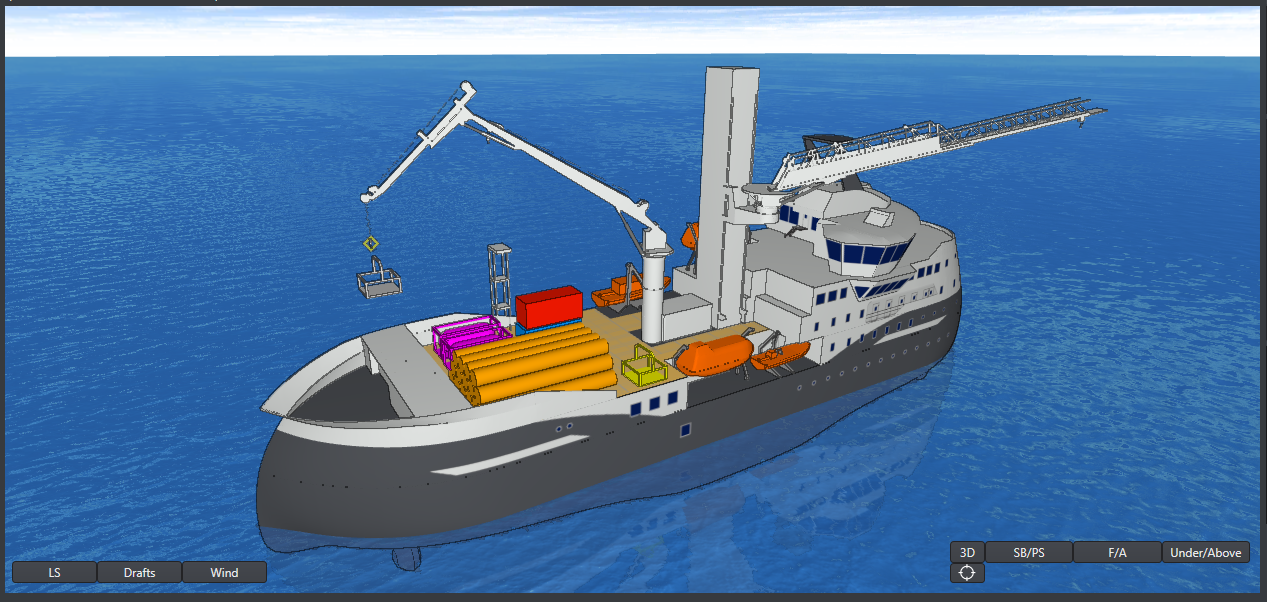

Our advanced interactive 3D view feature allows users to visualize and interact with various aspects of vessel operations in real-time. Vessel floating status, tank contents, and crane end equipment positions can be directly observed and adjusted within the 3D environment. This dynamic visualization provides far more comprehensive information than static 2D pictures, enabling precise control and accurate assessments.

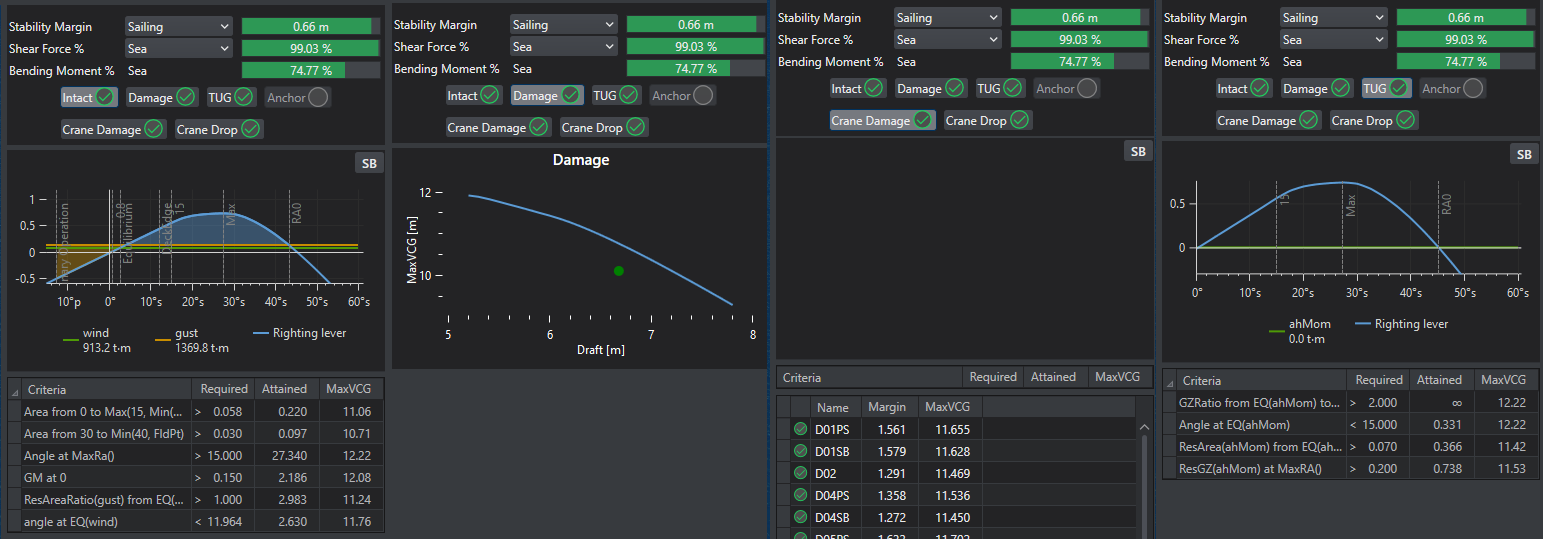

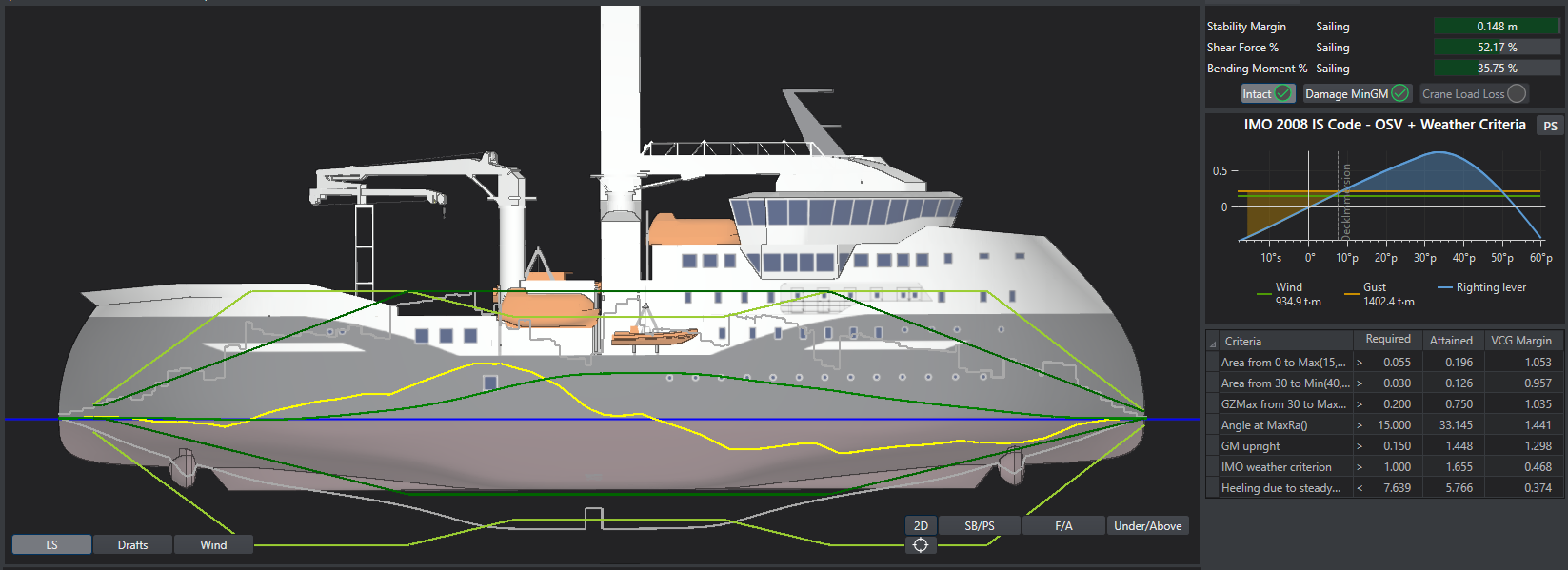

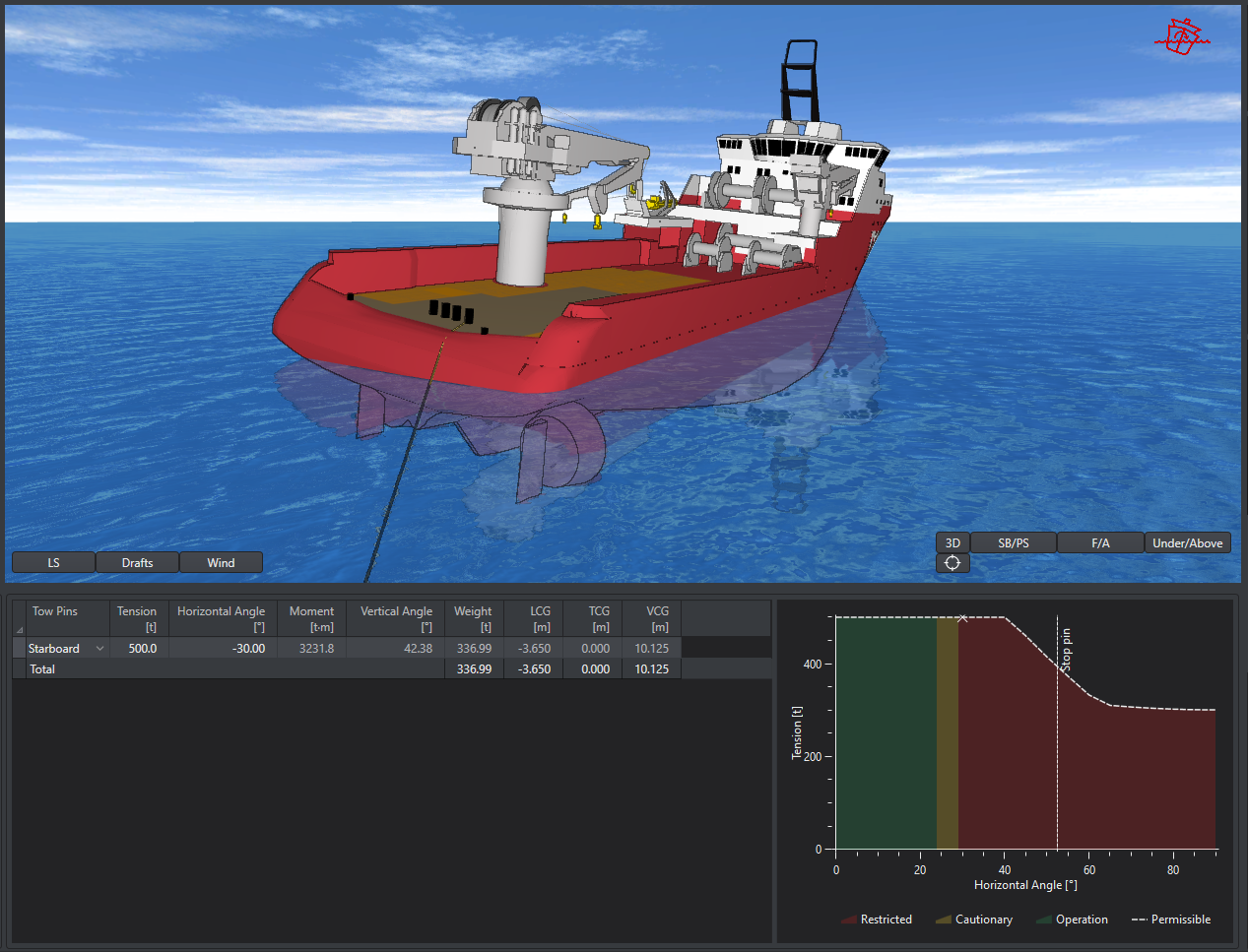

Hydro ensures compliance with stability criteria based on MaxVCG/MinGM curves or direct stability calculations for both intact and damage states. It calculates stability margins for each criterion, providing critical information for loading and daily operations, including firefighting, towing, and crane operations. Hydro’s flexible code supports all relevant regulations and meets IACS UR L5 requirements.

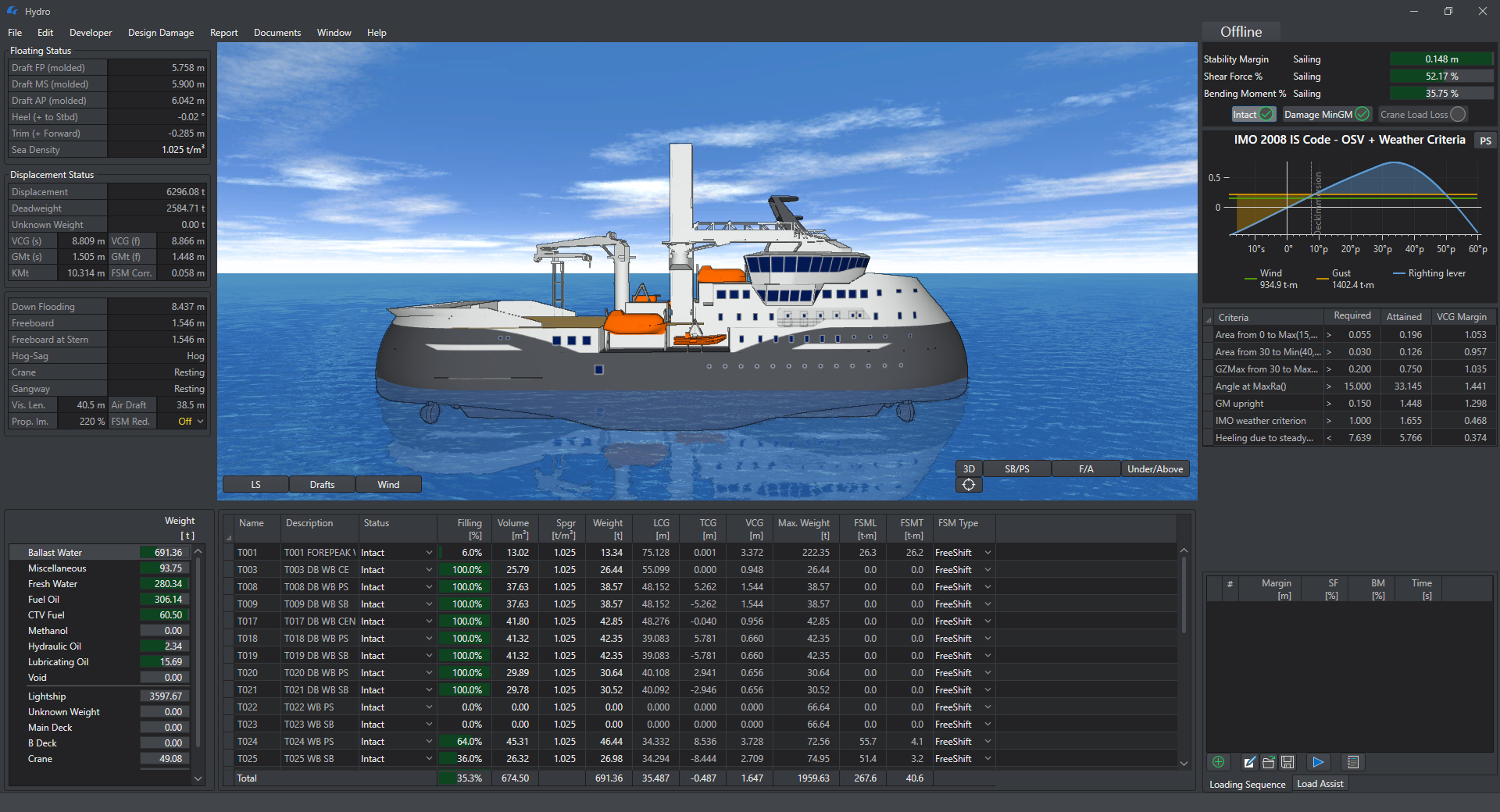

The actual loading condition is the basis for longitudinal strength as well. Diagrams of permissible shear forces and bending moments, along with actual values, are visible directly on the 3D model. Users can see real-time effects of changes to loads or deck cargo/crane movements. Calculations and conclusions are shown in a dedicated screen area and can be printed in a report.

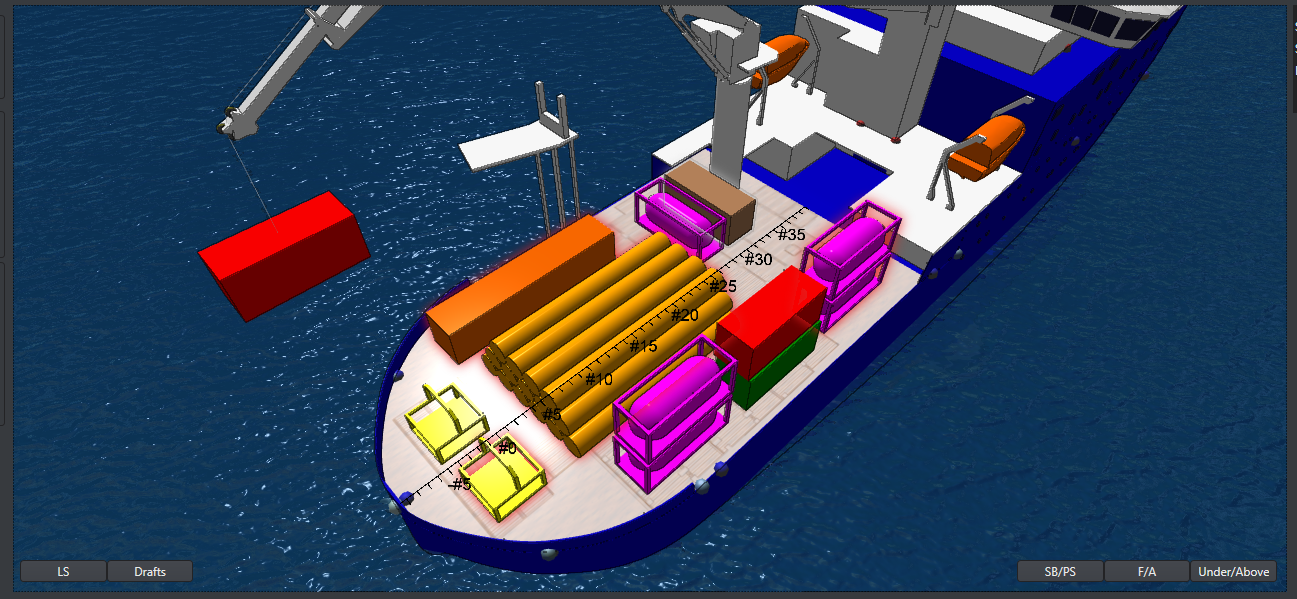

The cargo feature in Hydro offers an intuitive and versatile approach to managing cargo on vessels. Users can easily add graphical 3D cargo to predefined decks using a simple drag-and-drop interface. These cargos can be predefined items, such as containers, or custom 3D objects created by the user. This flexibility allows for precise simulation and accurate calculations, ensuring that the impact of cargo on vessel stability and loading is thoroughly assessed.
